Nylon cable gland

Wave pipe joint FG type

Wave pipe joint FG type

Categories
Nylon cable gland
Brand
BOESE
Model
FG type
FOB Port
Ningbo,Shanghai
Terms of Payment
T/T
Update
11/21/2019

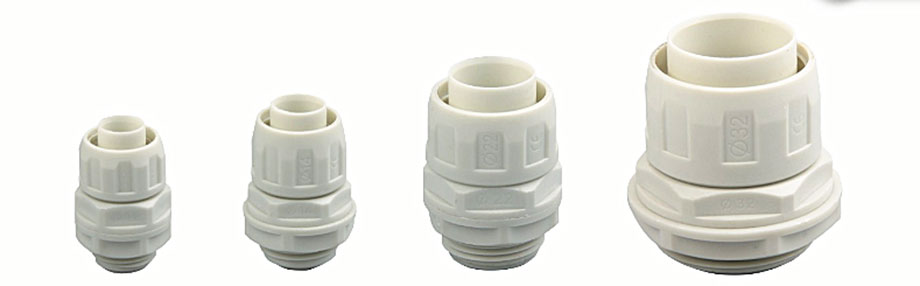

Wave pipe joint FG type
DESCRIPTION

Product description

Material:

ULapproved Nylon PA66(Flammability UL 94V-2) for A.B.D parts, (Accept to make flammability UL 94V-0); nitrile butadiene rubber( NBR) for C parts

Thread:

Merric

Working temperature:

-40℃ to 100 ℃ in static state, instanataneous heat resistance up to 120 ℃; -20℃to 80℃ in dynamic state, instantaneous heat resistance up to 100℃。

Characteristics:

Special design of clamping die and rubber part, large range in clamping cable. Ultra-strong stretching resistance, waterpoof, dustpoof, and high ability to resis salt, acid, alkail, alcohol, grease and general solvent.

Color:

Black, Gray, other  special color available can be designed at request

FG type

FLEXIBLE

GLAND

Packing quantity

FG12

12MM

100/2500

FG14

14MM

100/1500

FG16

16MM

100/1500

FG20

20MM

50/1000

FG25

25MM

50/1200

FG32

32MM

25/375

FG40

40MM

20/300

FG50

50MM

20/200

wave pipe joint fg type china
