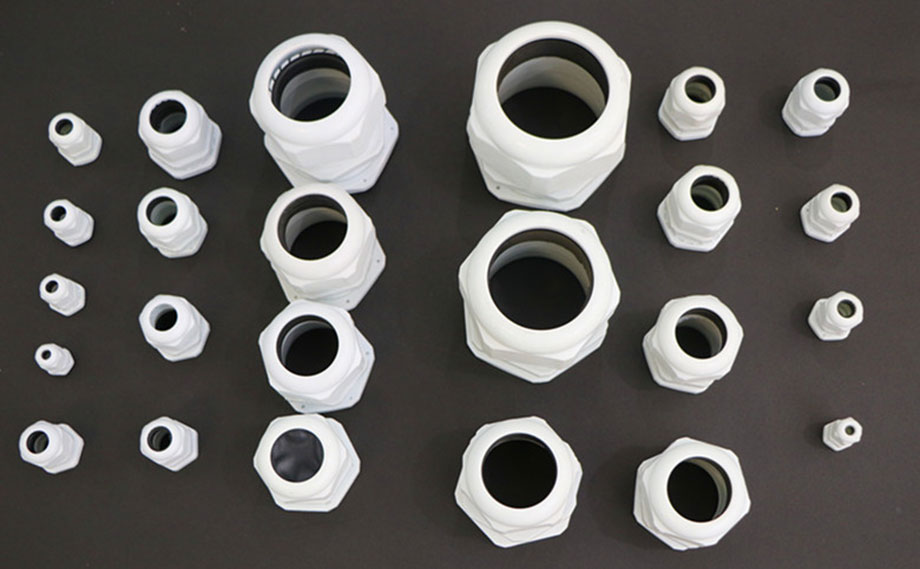

PG type Nylon cable gland

Material：

ULapproved Nylon PA66(Flammability UL 94V-2) for A.B.D parts,(Accept to make flammability UL 94V-0);nitrile butadiene rubber( NBR) for C parts

Thread：

Merric

Working temperature：

-40℃ to 100 ℃ in static state, instanataneous heat resistance up to 120 ℃；-20℃to 80℃ in dynamic state, instantaneous heat resistance up to 100℃。

Characteristics：

Special design of clamping die and rubber part, large range in clamping cable. Ultra-strong stretching resistance, waterpoof, dustpoof, and high ability to resis salt, acid, alkail, alcohol, grease and general solvent.

Color：

Black, Gray, other  special color available can be designed at request

Model

Cable Range(mm)

Thead O.D L2(mm)

Thead length L1(mm)

Spanner Size A&E(MM)

PG7

3-6.5

12.5

9

18/16

PG9

4-8

15.2

9

22/19

PG11

5-10

18.6

9

24/22

PG13.5

6-11

20.4

10

27/24

PG16

10-13

22.5

10

30/27

PG19

12-15

24

10

30/28

PG21

13-18

28.3

12

35/33

PG25

16-21

30

12

37/35

PG29

18-25

37

12

45/42

PG36

22-32

47

15

58/52

PG42

32-38

54

18

62/58

PG48

37-44

59.3

18

70/64

PG63

42-50

71

30

83/77

PG Thick type

Model

Cable Range(mm)

Thead O.D L2(mm)

Thead length L1(mm)

Spanner Size A&E(MM)

PG7

2-5

12.5

9

18/16

PG9

2-6

15.2

9

22/19

PG11

3-7

18.6

9

24/22

PG13.5

5-9

20.4

10

27/24

PG16

7-12

22.5

10

30/27

PG19

10-12

24

10

30/28

PG21

9-16

28.3

12

35/33

PG25

13-18

30

12

37/35

PG29

13-20

37

12

45/42

PG36

20-26

47

15

58/52

PG42

25-31

54

18

62/58

PG48

29-35

59.3

18

70/64

PG63

32-40

71

30

83/77
