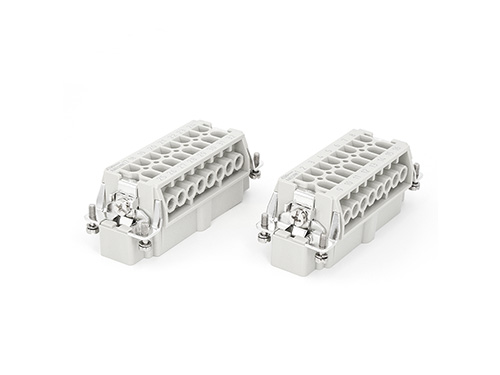

32 Pin Screw Terminal Double 16 Pin Male And Female Connector Heavy Duty Long Life
Inserts, Screw termination, male, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, Size: 32 A, Contacts: 32, Conductor cross-section: 1.0 ... 2.5 mm² , Copper alloy, Silver plated
Match:
Hood and Housing - H32A Series
Hood - Side Entry / Top Entry - High Construction for larger wire is available
Housing - Bulkhead / Surface Mounting / Cable to Cable
Locking levers : Double in Stainless Steel or Zinc plated Steel
Protective covers: plastic or metal cover optional
Thread:M25,M32,PG21,PG29
Number of contacts | 32 |
Rated current | 16A |
Rated voltage | 500V |
Rated impulse voltage | 6KV |
Pollution degree | 3 |
Or | |
Rated voltage Acc.to UI CSA | 600V |
Insulation Resistance | ≥1010Ω |
Material | Polycarbonate |
Limiting Temperatures | -40℃~+125℃ |
Flammability Acc,To UL94 | V0 |
MecHEnical Working Life-mating Cycles | ≥500 |
Material | Copper |
Surface | Silver plated / gold plated |
Contact Resistance | ≤1mΩ |
Wire Gauge | 0.14-4mm2 |
AWG | 26-14 |
Tightening Torque | 0.5Nm |
