Unleashing Precision and Durability | Number of contacts | 24 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |

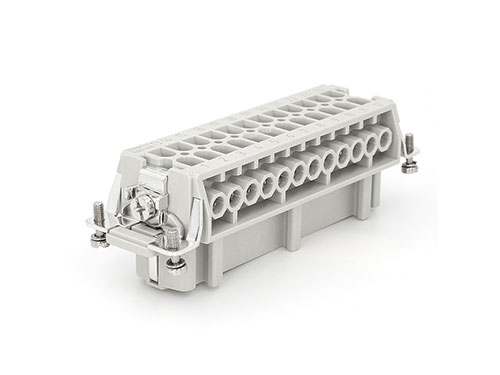

Contactor 024F series
24pin waterproof heavy duty rectangular connector
Inserts, Screw termination, Female, Polycarbonate, RAL 7032 (pebble grey), Rated current: 16A, 500V .
Size: 24 B, Contacts: 24, Conductor cross-section: 0.75 ... 2.5mm², Copper alloy, Silver plated
24Pin heavy duty rectangular connectors screw insert for hot runnner temperature controller
| Insert | |
| Number of contacts | 24 |
| Rated current | 16A |
| Rated voltage | 500V |
| Rated impulse voltage | 6KV |
| Pollution degree | 3 |
| Or | |
| Rated voltage Acc.to UI CSA | 600V |
| Insulation Resistance | ≥1010Ω |
| Material | Polycarbonate |
| Limiting Temperatures | -40℃～+125℃ |
| Flammability Acc,To UL94 | V0 |
| MecHEnical Working Life-mating Cycles | ≥500 |
| Pin | |
| Material | Copper |
| Surface | Silver plated / gold plated |
| Contact Resistance | ≤1mΩ |
| Screw connection | |
| Wire Gauge | 0.14-4mm |
| AWG | 26-14 |
| Tightening Torque | 0.5Nm |
The hot runner and temperature controller best choice.
Controller box solution.
Insert with bulkhead housing +plastic cover.
