Elevate Your Business with Reliable Cable Ties
Unleashing Precision and Durability Your Reliable Cable Tie Solutions
Unleashing Precision and Durability | Model: | 8mm |
| Material: | High quality recycled PE. |
| Work temperatures: | –40ºC to +80ºC. |
| Application: | Special design prevents the fixing rotating in the drill hole. Adapted for wood, self-tapping and chipboard screws. |
| Material | High quality recycled PE. |
| Work temperatures | –40ºC to +80ºC. |
| Application | Special design prevents the fixing rotating in the drill hole. Adapted for wood, self-tapping and chipboard screws. |
| CODE NO. | WRAPPING RANGE (MM) |
LENGTH PER ROLL (Meter) |
DESCRIPTION (mm) |
PACK PER CARTON | COLOUR | |||
| d | D | W | TRANSLUCENT | BLACK | ||||
| SWB-03 | 1.5-10 | 10 | 1.5 | 3.0 | 4.0 | 150 | √ | √ |
| SWB-06 | 4-50 | 10 | 4 | 6 | 7.0 | 130 | √ | √ |
| SWB-08 | 6-60 | 10 | 6 | 8 | 10.8 | 70 | √ | √ |
| SWB-10 | 7.5-60 | 10 | 7.5 | 10 | 11.4 | 50 | √ | √ |
| SWB-12 | 9-65 | 10 | 9 | 12 | 13.9 | 55 | √ | √ |
| SWB-15 | 12-75 | 10 | 12 | 15 | 15.0 | 25 | √ | √ |
| SWB-19 | 15-100 | 10 | 15 | 19 | 18.2 | 20 | √ | √ |
| SWB-24 | 20-130 | 10 | 20 | 24 | 19.6 | 10 | √ | √ |
| SWB-30 | 26-150 | 10 | 26 | 30 | 43.0 | 6 | √ | √ |
| CODE NO. | A(MM) | B(MM) | C(MM) | D(MM) | PIECES PER BAG | BAGS PER CARTON | COLOUR | ||
| MM | INCH | WHITE | BLACK | ||||||
| OK-1/8R | 9.5 | 9.6 | 3.2 | 1/8" | 19.8 | 100 | 100 | √ | √ |
| OK-3/16R | 9.6 | 9.6 | 4.8 | 3/16" | 19.8 | 100 | 100 | √ | √ |
| OK-1/4R | 12.0 | 10.0 | 6.35 | 1/4" | 22.0 | 100 | 100 | √ | √ |
| OK-5/16R | 12.0 | 10.0 | 7.9 | 5/16" | 22.0 | 100 | 100 | √ | √ |
| OK-3/8R | 12.5 | 12.0 | 9.5 | 3/8" | 24.0 | 100 | 100 | √ | √ |
| OK-1/2R | 15.2 | 12.0 | 12.7 | 1/2" | 31.0 | 100 | 100 | √ | √ |
| OK-5/8R | 18.2 | 12.0 | 15.8 | 5/8" | 34.3 | 100 | 100 | √ | √ |
| OK-3/4R | 18.2 | 12.0 | 19.4 | 3/4" | 35.0 | 100 | 100 | √ | √ |
| OK-1R | 22.0 | 12.0 | 25.4 | 1" | 43.0 | 100 | 100 | √ | √ |
| OK-17/16R | 24.0 | 12.0 | 27.0 | 11/16" | 45.0 | 100 | 100 | √ | √ |
| OK-5/4R | 26.5 | 12.0 | 31.8 | 11/4" | 46.2 | 100 | 100 | √ | √ |
| OK-3/2R | 30.0 | 12.0 | 38.0 | 11/2" | 52.0 | 100 | 100 | √ | √ |

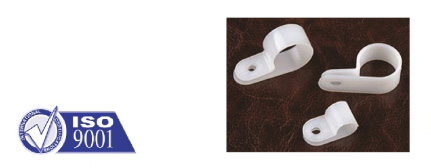

Material: Nylon 66, 94V-2, certificated by UL.
Usage: after bundling wires, fix them on plate with screw or bolt.
