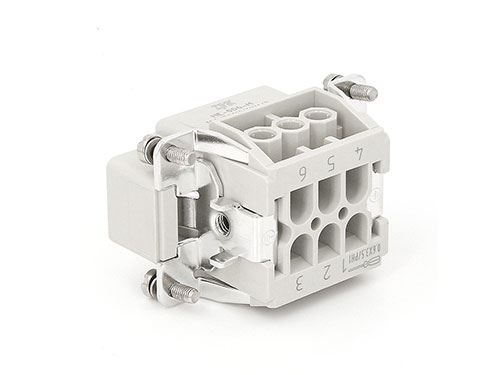

6 pin Female Male Inserts Heavy Duty Connector

6 pin Female Male Inserts Heavy Duty Connector
Categories
Brand
BOESE
Model
006-M
FOB Port
Ningbo,Shanghai
Terms of Payment
T/T
Update
04/15/2020
6 pin Female Male Inserts Heavy Duty Connector 6 pin Female Male Inserts Heavy Duty Connector 6 pin Female Male Inserts Heavy Duty Connector 6 pin Female Male Inserts Heavy Duty Connector
DESCRIPTION
Contactor 006 m series Inserts Heavy Duty Connector
插芯
Number of contacts 6
Rated current 16A
Rated voltage 500V
Rated impulse voltage 6KV
Pollution degree 3
Or
Rated voltage Acc.to UI CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Limiting Temperatures -40℃~+125℃
Flammability Acc,To UL94 V0
MecHEAnical Working Life-mating Cycles ≥500
插针
Material Copper
Surface Silver plated / gold plated
Contact Resistance ≤1mΩ
螺钉连接
Wire Gauge 0.14-4mm?
AWG 26-14
Tightening Torque 0.5Nm

contactor 006 m series for sale

6 pin Female Male Inserts Heavy Duty Connector Current carrying capacity

The current carrying is limited by maximum temperature of materials for inserts and contacts including terminals.
Measuring and testing tehniques according to Din En 60512-5
