Heavy Duty Connector

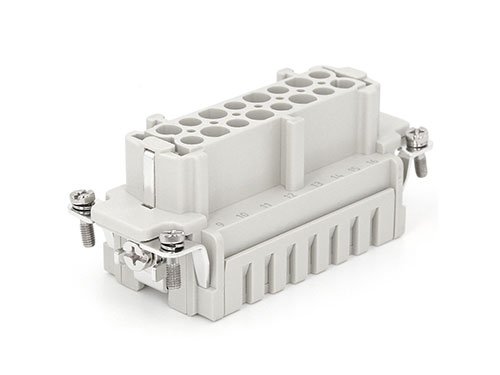

16 pin Crimp Terminal Connectors Rectangular Inserts 016FC series

16 pin Crimp Terminal Connectors Rectangular Inserts 016FC series

Categories
Heavy Duty Connector
Brand
BOESE
Model
016FC
FOB Port
Ningbo,Shanghai
Terms of Payment
T/T
Update
11/21/2019
16 pin Crimp Terminal Connectors Rectangular Inserts 016FC series 16 pin Crimp Terminal Connectors Rectangular Inserts 016FC series 16 pin Crimp Terminal Connectors Rectangular Inserts 016FC series 16 pin Crimp Terminal Connectors Rectangular Inserts 016FC series
DESCRIPTION
插芯
Number of contacts 16
Rated current 16A
Rated voltage 500V
Rated impulse voltage 6KV
Pollution degree 3
Or
Rated voltage Acc.to UI CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Limiting Temperatures -40℃~+125℃
Flammability Acc,To UL94 V0
MecHEAnical Working Life-mating Cycles ≥500
插针
Material Copper
Surface Silver plated / gold plated
Contact Resistance ≤1mΩ
螺钉连接
Wire Gauge 0.14-4mm?
AWG 26-12
Tightening Torque 0.5Nm

contactor 016fc series hot
